Usha Pump

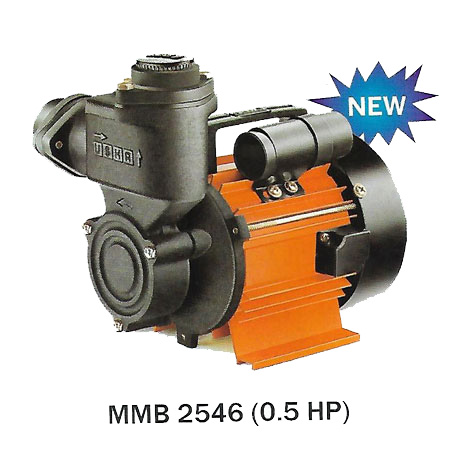

Usha Pump MMB 2546 (0.5 HP)

Advanced Technology The Open well Submersible series is designed and manufactured by latest manufacturing techniques. High Performance and Trouble Free Operation Strict quality control measures are adopted to ensure better performance and trouble free operation. Power Range 0.37 KW to 3.7 KW (0.5 HP to 5.0 HP) Voltage Range 180/240 V single phase, 380 V to 415 V. Three phase, 50 Hz A.C. Total Head Range 6 meters to 44 meters Total Discharge Capacity 67200 LPM to 2100 LPH Pipe Size 25x25 mm to 65x65 mm Liquid Handling Clear Water Rotation Anticlockwise as viewed from shaft end

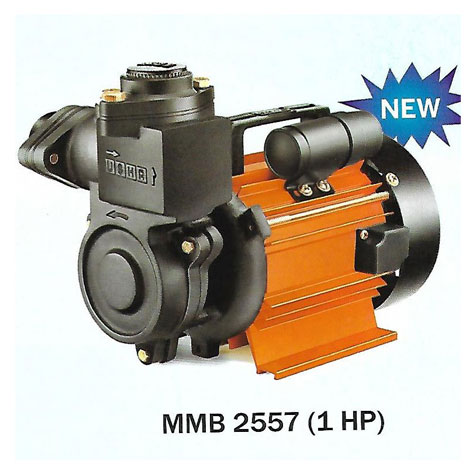

Usha Pump MMB 2557 (1 HP)

Advanced Technology The Open well Submersible series is designed and manufactured by latest manufacturing techniques. High Performance and Trouble Free Operation Strict quality control measures are adopted to ensure better performance and trouble free operation. Power Range 0.37 KW to 3.7 KW (0.5 HP to 5.0 HP) Voltage Range 180/240 V single phase, 380 V to 415 V. Three phase, 50 Hz A.C. Total Head Range 6 meters to 44 meters Total Discharge Capacity 67200 LPM to 2100 LPH Pipe Size 25x25 mm to 65x65 mm Liquid Handling Clear Water Rotation Anticlockwise as viewed from shaft end

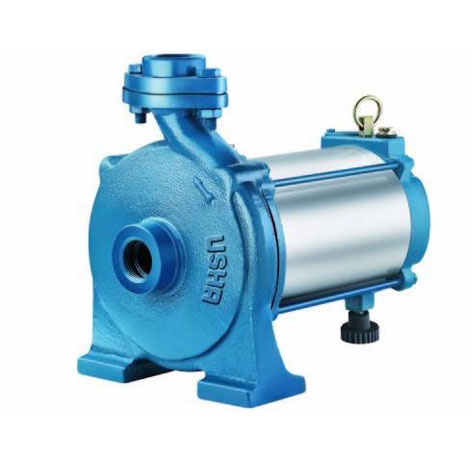

Usha Pump Varti King 0.5 HP

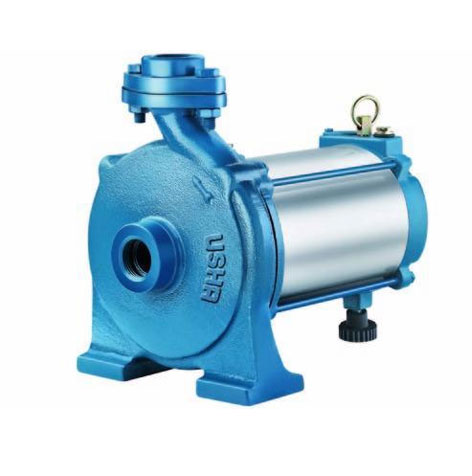

Usha Pump Varti King 1 HP

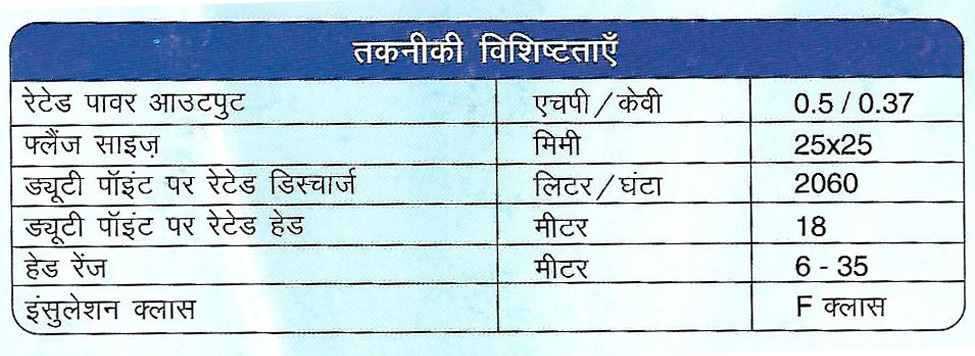

Usha Pump 0.5 HP

Technical:

  • Rating (HP) :1
  • RPM :2880
  • Pipe Size :25*25
  • Head Range (m) :7-19
  • Discharge (LPM) : 9036-1188

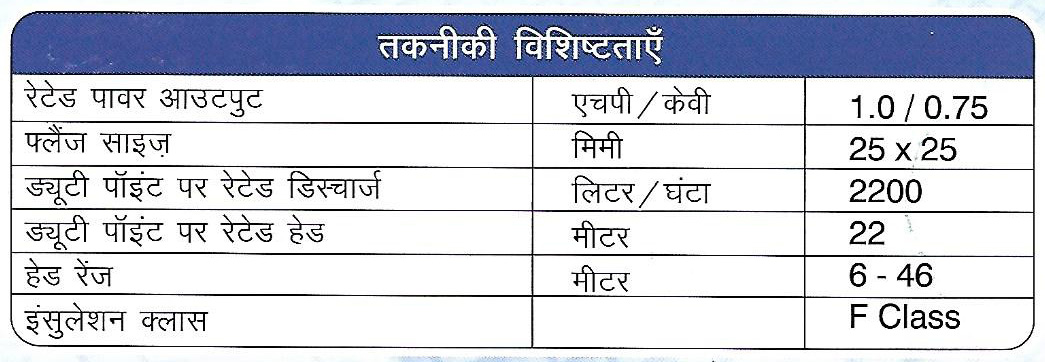

Usha Pump 1 HP

Technical:

  • Rating (HP) :1
  • RPM :2880
  • Pipe Size :25*25
  • Head Range (m) :9-29
  • Discharge (LPM) : 10620-2556
